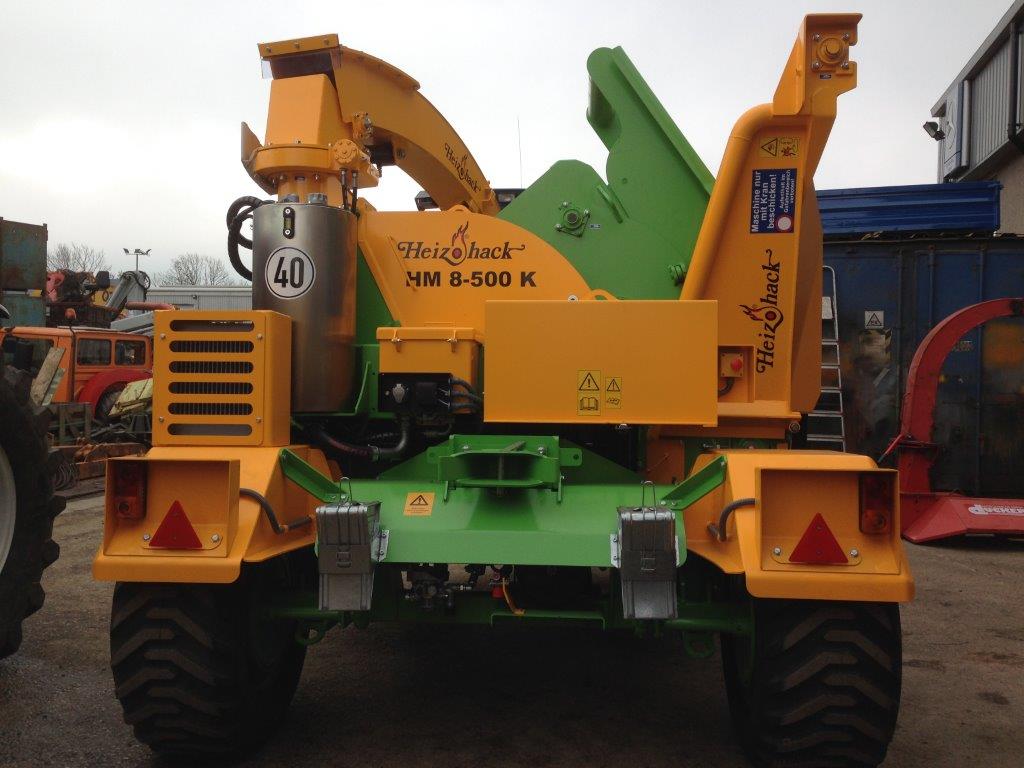

Technical Data and Equipment for the Wood Chipping Machine: 8-500-1


Height of Feed: 500 mm


Width of Feed: 708 mm


 Feed: - Pressure roller with steel teeth (Ø 800 mm)


 - Conveyor belt 900 mm long


 - In-feed table 1.500 mm long


Feed Flap: - Hydraulically foldable


- Front end roller at the in-feed table


 - Optionally with conveyor belt


Sieve: Standard Mesh 35/40mm


Drum Ø: 495 mm with quick exchangeable blades


Flywheel: 1.000 kg


 Ejector: - Hydraulically foldable, adjustable for height and rotatable


 (Ejecting height approx. 3.35 m up to 4.25 m; depending on chassis


 and tyres)


 - Hydraulic ejector flap adjustment


 Controls: - Automatic load-dependent feed controls


 - Two day counters and one overall operating hours counter


 - Feed speed infinitely variable


 - Feed direction reversible


 - Remote Control with 10 m cable and control panel for all functions


 Drive: PTO shaft and V belt transmission


Drive rpm: max. 1.000 min-1


Drive Power: max. permissible 170 KW / 230 PS
