CRANE 120 / 120 4WD
CRANE 120 / 120 4WD
Contact us for price
Ingleton, United Kingdom
Description

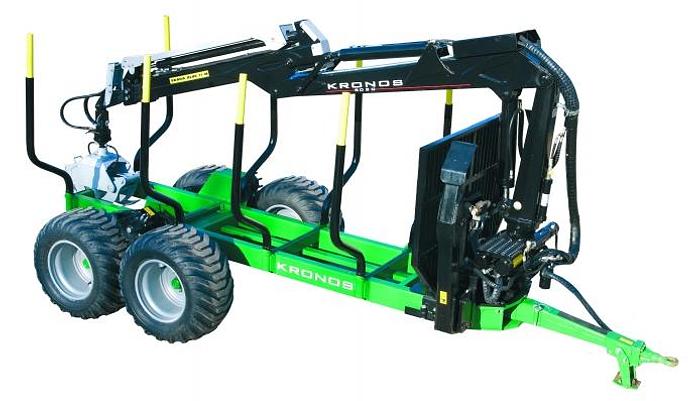

The models 120, 120 2WDH and 120 4WD are designed with double frame beams to make the structure rigid and to withstand heavy stresses even in demanding conditions. The 4WD model is hydraulically driven with a drive roller that automatically deploys between the tyres when the drive is switched on.
Features:
- Long drawbar lead into the tractor for the maximum compliant trailer.
- Heavy duty posts, 12 mm wall thickness
- Powerful 80 millimetre shafts on the hub
- LED driving lights protected in off-road driving, optional
- LED work lighting, optional
- Reverse camera, optional
- Four banks with pole extensions
- Smart drive / Smart drive+, optional
- Hub drive, optional (wheel hub motor)
Specifications
Manufacturer | CRANE |
Model | 120 / 120 4WD |
Condition | New |
Weight Kg | 1,690 / 2,050 |
Carrying Capacity Kg | 12,000 |
Cross-section area of load platform m2 | 2.9 |
Overall length mm | 6100 |
Length of load area mm | 4200 |
Bolsters: Fixed/Movable | 4/0 |
Load Supports | 8 |
Bogie Wheelbase mm | 1040 |
Bogie movement range degrees | 20 |
Ground clearance at bogie mm | ~610 |
Ground clearance at rear frame | ~610 |
4WD Push force of trailer kN Hydr. driven | 185 bar |
